| فئة: | جزء المحرك | نموذج الآلة: | EC160D EC160E EC170D EC180C EC180D |
|---|---|---|---|
| تطبيق: | حفارة | اسم المنتج: | محرك التأرجح |
| رقم الجزء: | فوي14538545 14538545 | التعبئة: | كرتونة التصدير القياسية |
| إبراز: | Excavator Swing Motor for EC160E,Swing Motor Engine Parts EC170D,EC180C Excavator Swing Motor |
||

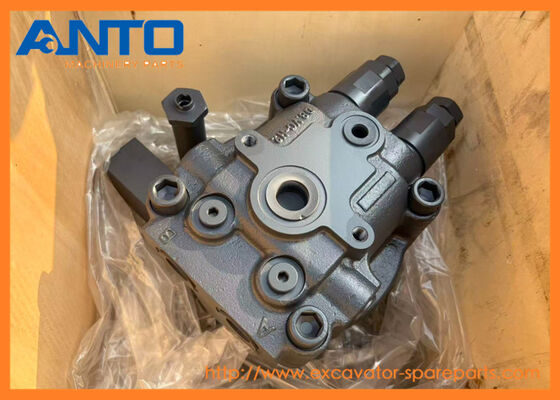

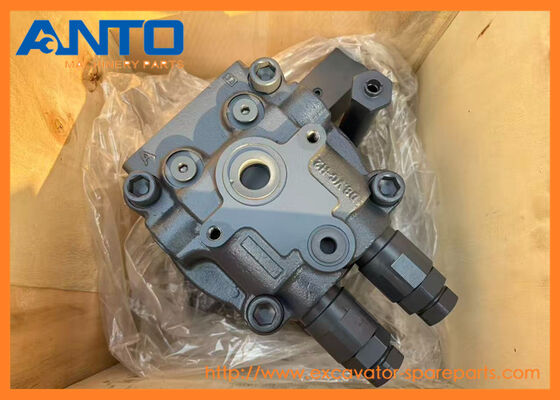

| Name | Swing Motor |
| Parts No | VOE14538545 14538545 |
| Machine Model | EC160D EC160E EC170D EC180C EC180D |
| Category | Engine Part |
| Lead time | 1-3 DAYS |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Means of transport | By sea/air, DHL FEDEX UPS TNT EMS |
| Packing | As request or standard packing |
| VOE14563342 Swing gear |
| EC160B, EC160C, EC180B, EC180C, EW160C |
| VOE14540719 Swing gearbox |
| EC160C, EC160D, EC160E, EC170D, EC180C, EC180D, EC180E |
| VOE14577176 Swing gear |
| EC160B, EC160C, EC160D, EC180B, EC180C, EC180D, EW160C |
| VOE14647522 Swing gear |
| EC160E, EC170D, EC180E |
| VOE14563335 Swing gear |
| EC290B, EC290C |
| VOE14563327 Swing gear |
| EC210B |
| VOE14566202 Swing gearbox |
| EC240B, EC240C, EC250D, EC250E, FC2924C |
| VOE14520573 Swing Gear |
| EC290B |
| VOE14215473 Swing bearing |
| EC420 ÅKERMAN, EC450, EC450 ÅKERMAN |
| VOE14539045 Swing motor |
| EC140C, EC140D, EC140E |
| VOE14573100 Swing Motor |
| EC330B, EC330C, EC360B, EC360C |
| VOE14505766 Swing Gear |
| EC210B |
| VOE14633636 Swing motor |
| EC300D, EC300E, PL3005D, PL3005E |
| VOE14559150 Swing motor |
| EW140E, EW145B |
| VOE14530324 Swing Gear |
| EC210B |
| Pos. | Part No | Qty | Parts name | Comments |
| VOE14538545 | [1] | Swing motor | ||
| 1 | SA8230-04420 | [1] | Inner race | |
| 2 | SA8220-15630 | [1] | Seal | |
| 3 | SA8230-00790 | [1] | Roller bearing | |
| 4 | SA8230-04320 | [1] | Spring | |
| 5 | SA8230-04360 | [1] | Plate | |
| 6 | SA8230-04410 | [1] | Plate | |
| 7 | VOE14519350 | [9] | Piston | |
| 8 | SA8230-22900 | [3] | Plate | |
| 9 | SA8230-22910 | [3] | Friction plate | |
| 10 | SA8230-25140 | [1] | O-ring | |
| 11 | SA8230-02411 | [2] | O-ring | |
| 12 | SA8230-04230 | [10] | Spring | |
| 13 | SA8230-31150 | [2] | Pin | |
| 14 | VOE993320 | [3] | O-ring | |
| 15 | VOE14552099 | [3] | Cap | |
| 16 | SA8230-04240 | [4] | Spring | |
| 17 | SA8230-00891 | [4] | Sealing ring | |
| 18 | SA8230-04330 | [4] | Bushing | |
| 19 | SA8230-03990 | [1] | Plate | |
| 20 | SA8230-00820 | [1] | Needle Bearing | |
| 21 | VOE14519351 | [1] | Piston | |
| 22 | SA8230-01030 | [1] | Ring | |
| 23 | VOE14508587 | [1] | Cylinder | |
| 24 | VOE14508589 | [1] | Housing | |
| 25 | SA8230-23350 | [1] | Plug | |
| 26 | VOE14508590 | [2] | Valve | |
| 27 | VOE14625246 | [1] | Ring | |
| 28 | VOE990557 | [1] | O-ring | |
| 29 | VOE983503 | [1] | O-ring | |
| 30 | VOE14534867 | [1] | Cover | |
| 31 | VOE14534868 | [1] | Valve | |
| 32 | SA8230-00610 | [3] | Bolt | |
| 33 | SA8230-11610 | [2] | Cap | |
| 34 | VOE14880821 | [2] | Back-up ring | |
| 35 | VOE983525 | [4] | O-ring | |
| 36 | VOE14596241 | [2] | Spring | |
| 37 | SA8230-11110 | [2] | Non-return valve | |
| 38 | VOE14508592 | [2] | Relief valve | |
| 39 | VOE984135 | [4] | Hex. socket screw | |
| 100 | VOE14534869 | [1] | Seal |
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
