تفاصيل المنتج:
شروط الدفع والشحن:
|
| فئة: | محرك السفر | نموذج الآلة: | PC390 PC390LL PC400 PC450 PC490 |
|---|---|---|---|
| تطبيق: | حفارة | اسم المنتج: | مكبس |
| رقم الجزء: | 706-8J-42170 | التعبئة: | كرتونة التصدير القياسية |
| إبراز: | Komatsu excavator piston PC390LC-10,PC400LC-7 excavator spare parts,Komatsu travel motor piston |
||

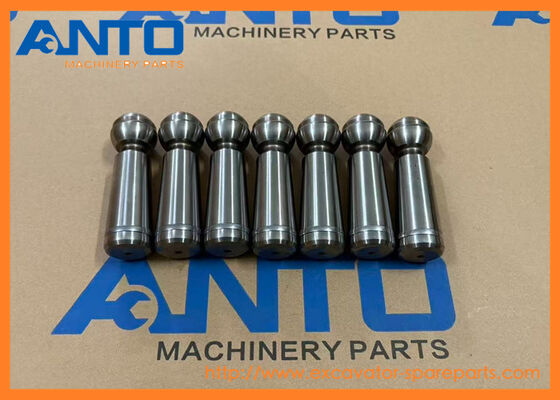

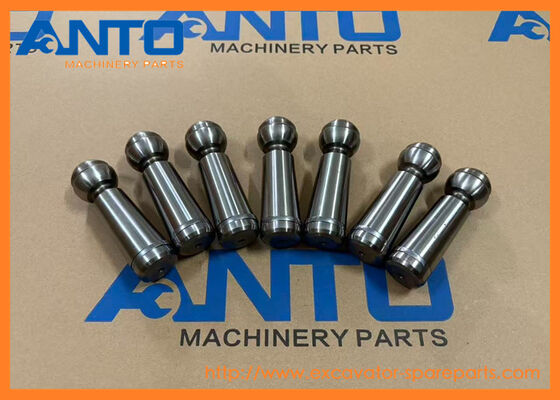

| Name | Piston |
| Parts No | 706-8J-42170 7068J42170 |
| Machine Model | PC390 PC390LL PC400 PC450 PC490 |
| Category | Travel Motor Parts |
| Lead time | 1-3 DAYS |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Means of transport | By sea/air, DHL FEDEX UPS TNT EMS |
| Packing | As request or standard packing |
Core component inside the travel hydraulic motor. It reciprocates under hydraulic oil pressure to convert hydraulic pressure into mechanical driving force, powering the excavator’s crawler travelling.
EXCAVATORS PC390 PC390LL PC400 PC450 PC490 Komatsu
| 708-2L-28540 PISTON |
| AIR, D155A, D155AX, D375A, D475A, D475ASD, D65EX, D65PX, D65WX, HYDRAULIC, PC130, PC138, PC138US, PC160, PC190, PC200, PC220, PC228, PC228US, PC270, PC300, PC350, PC400, PC450, PRESSURE, RAIN, WA500, ... |
| 707-36-16580 PISTON |
| PC300, PC350, PC400, PRESSURE, RAIN |
| 707-36-14650 PISTON |
| PC220, PC240, PC290, PC300, PC350, RAIN |
| 707-36-15260 PISTON |
| PC220LL, PC270, PC270LL, PC290, PC300, PC308, PC350, PC360, PRESSURE, RAIN, WA320 |
| 708-2G-13370 PISTON SUB ASS'Y |
| AIR, D61EX, D61EXI, D61PX, D61PXI, PC300, PC300HD, PC300LL, PC340, PC350, PC350HD, PC360, PRESSURE, RAIN, WA470, WA480, WA600, WD600 |
| 708-2J-04170 PISTON ASSEMBLY, SERVO |
| PC490 |
| 708-1S-13520 PISTON |
| D275A, D31EX, D31PX, D37EX, D37PX, D39EX, D39PX, D51EX/PX, HM300, HM400, PC27MR, PC27MRX, PC30MR, PC30UU, PC35MR, PC38UU, PC40MR, PC490, PC50MR, WA500, WA600, WD600 |
| 708-2J-13310 PISTON SUBASSEMBLY |
| PC490 |
| 6207-39-2200 PISTON RING ASS'Y,PER CYLINDER |
| S6D95L |
| 6735-31-2080 PISTON RING ASS'Y (STD) |
| 6D102, S6D102E |
| 700-90-61252 PISTON |
| WA500 |
| 707-91-02080 PISTON ASS'Y |
| PC650, PC650SE |
| 707-37-14080 Piston |
| D375A |
| 707-36-20620 Piston |
| D375A |
| 708-1W-44170 PISTON |
| AIR, D61EX, D61EXI, D61PX, D61PXI, FRONT, GD555, GD655, GD675, HM300, HM400, HYDRAULIC, WA320, WA380, WA380Z, WA430, WA470, WA480, WA500 |
| 6734-31-2040 PISTON RING ASS'Y (STD) |
| 6D102, S6D102E |
| 708-1W-14120 PISTON SUBASSEMBLY |
| WB146, WB146PS, WB156, WB156PS |
| 423-33-31320 PISTON |
| FRONT, WA380, WA380Z |
| 723-26-51250 PISTON |
| D41E6T, D63E, PC110R, PC75, PC75R, PC75UD, PC75US, PC75UU, PC78US, PC88MR, PC95R, PW110R, PW75, PW75R, PW95R |
| 6735-31-2020 PISTON RING ASS'Y (STD) |
| 6D102, S6D102E |
| Pos. | Part No | Qty | Parts name | Comments |
| 706-8J-01421 | [1] | MOTOR ASS'Y Komatsu China | ||
| ["SN: 52605-UP"] |$1. | ||||
| 1. | 706-8J-41610 | [1] | SHAFT,DRIVE Komatsu | 6.402 kg. |
| ["SN: 52605-UP"] | ||||
| 2. | 706-8J-41010 | [1] | BEARING Komatsu | 8.22 kg. |
| ["SN: 52605-UP"] | ||||
| 3. | 706-77-42890 | [1] | BEARING Komatsu | 1.185 kg. |
| ["SN: 52605-UP"] | ||||
| 4. | 706-8J-41810 | [1] | RETAINER Komatsu | 1.09 kg. |
| ["SN: 52605-UP"] | ||||
| 5. | 706-8J-41660 | [1] | SPACER KIT Komatsu | 0.23 kg. |
| ["SN: 52605-UP"] | ||||
| 6. | 04064-06525 | [1] | RING,SNAP Komatsu China | 0.021 kg. |
| ["SN: 52605-UP"] | ||||
| 7. | 706-8J-42330 | [1] | SEAL,OIL Komatsu | 0.15 kg. |
| ["SN: 52605-UP"] analogs:["7068J41620"] | ||||
| 8. | 706-8J-41820 | [1] | SPACER Komatsu | 0.12 kg. |
| ["SN: 52605-UP"] | ||||
| 9. | 04065-09030 | [1] | RING,SNAP Komatsu | 0.03 kg. |
| ["SN: 52605-UP"] analogs:["2324013250", "R0406509030"] | ||||
| 10. | 706-8J-41280 | [1] | SHAFT,CENTER Komatsu OEM | 1.91 kg. |
| ["SN: 52605-UP"] | ||||
| 11. | 706-8J-41270 | [1] | RING,CENTER Komatsu | 0.26 kg. |
| ["SN: 52605-UP"] | ||||
| 12. | 706-8J-41290 | [1] | SPRING Komatsu | 0.38 kg. |
| ["SN: 52605-UP"] | ||||
| 13. | 706-8J-41260 | [1] | RETAINER Komatsu OEM | 2.22 kg. |
| ["SN: 52605-UP"] | ||||
| 14. | 708-23-12350 | [7] | SCREW Komatsu | 0.008 kg. |
| ["SN: 52605-UP"] | ||||
| 15. | 706-8J-42170 | [7] | PISTON SUB ASS'Y Komatsu OEM | 0.000 kg. |
| ["SN: 52605-UP"] | ||||
| 16. | 706-7K-91340 | [5] | PLATE Komatsu | 1 kg. |
| ["SN: 52605-UP"] | ||||
| 17. | 706-7K-91350 | [4] | DISC Komatsu | 0.24 kg. |
| ["SN: 52605-UP"] | ||||
| 18. | 706-8J-91110 | [1] | PISTON,BRAKE Komatsu | 9.802 kg. |
| ["SN: 52605-UP"] | ||||
| 19. | 07000-15230 | [1] | O-RING Komatsu China | 0.03 kg. |
| ["SN: 52605-UP"] analogs:["0700005230"] | ||||
| 20. | 07001-05230 | [1] | RING,BACK-UP Komatsu | 0.016 kg. |
| ["SN: 52605-UP"] | ||||
| 21. | 708-8H-15220 | [1] | O-RING Komatsu | 0.025 kg. |
| ["SN: 52605-UP"] | ||||
| 22. | 706-8J-91120 | [1] | RING,BACK-UP Komatsu | 0.02 kg. |
| ["SN: 52605-UP"] | ||||
| 23. | 706-8J-91130 | [6] | SPRING Komatsu | 0.24 kg. |
| ["SN: 52605-UP"] |
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
Advantage
1. Offer Top quality & competitive products
2. Support 12-month warranty
3. 100% tested before shipping
4. Delivery in time
5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator
6. More than 15 years production and 11 years foreign trade experience
7. Professional QC team
8. Best sales team, 24 hours service
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
