| فئة: | معدات تخفيض التأرجح | نموذج الآلة: | R160LC9 R180LC9 R210LC9 R220LC9A |
|---|---|---|---|

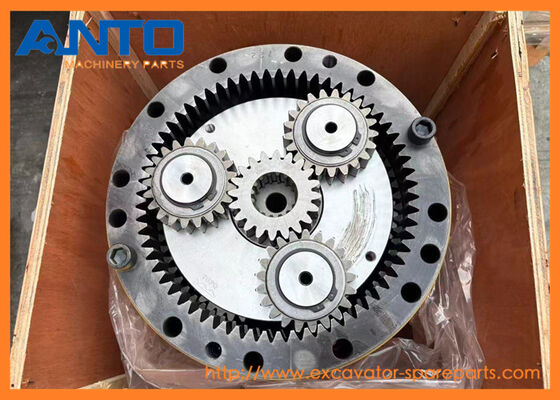

| تطبيق: | حفارة | اسم المنتج: | علبة التروس المتأرجحة |
| رقم الجزء: | 31Q6-10141 | التعبئة: | كرتونة التصدير القياسية |
| إبراز: | HYUNDAI excavator swing gearbox,Excavator swing motor spare parts,Swing gearbox for R160LC9 R180LC9,Excavator swing motor spare parts,Swing gearbox for R160LC9 R180LC9 |
||
| Name | Swing Gearbox |
| Parts No | 31Q6-10141 |
| Machine Model | R160LC9 R180LC9 R210LC9 R220LC9A R170W9 R180W9A |
| Category | Swing Reduction Gear |
| Lead time | 1-3 DAYS |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Means of transport | By sea/air, DHL FEDEX UPS TNT EMS |
| Packing | As request or standard packing |
| Working Principle | 1. Power Input: The swing hydraulic motor (e.g., 31Q6-10130) delivers high-speed, low-torque power to the gearbox’s input shaft. |
| 2. Torque Conversion: Power flows through 3 stages of planetary gears: Input shaft → sun gear → planet gears (rotating around sun gear) → ring gear (fixed) → carrier (outputs low-speed, high-torque). | |
| 3. Turntable Drive: The gearbox’s output flange connects to the excavator’s turntable gear ring; the high-torque output rotates the turntable (upper body) smoothly. | |
| 4. Braking: When the swing motor stops, hydraulic pressure to the brake is released – the multi-disc brake clamps the output shaft, locking the turntable in place to prevent drift. | |
| Core Functions | 1. Torque Amplification: Converts low-torque hydraulic motor power into high-torque force needed to rotate the heavy upper turntable (cab + boom + bucket = 5–8 tons). |
| 2. Speed Control: Reduces hydraulic motor speed (1,500–2,000 RPM) to turntable speed (2.5–3.5 RPM) – ensures precise, controlled rotation for digging/loading. | |
| 3. Load Holding: Integral hydraulic brake prevents turntable drift (even with heavy loads) – critical for safety on uneven ground. | |
| 4. Power Transmission Efficiency: 92–95% efficiency (minimal power loss) – maximizes excavator fuel efficiency and swing performance. |
9-SERIES CRAWLER EXCAVATOR R160LC9 R160LC9A R160LC9S R180LC9 R180LC9A R180LC9S R210LC9 R210LC9BC R210LC9BH R210NLC9 R220LC9A R220NLC9A RB160LC9S RB220LC9S RD220LC9
9-SERIES WHEEL EXCAVATOR R170W9 R180W9A R180W9S R210W-9 R210W9A R210W9S
F-SERIES CRAWLER EXCAVATOR HX160L HX180L Hyundai
| 39Q5-12100 SWING REDUCTION GEAR |
| R160LC9, R160LC9A, R160LC9S, R160W9A, R170W9, R180LC9, R180LC9A, R180LC9S, R180W9A, R180W9S |
| 31Q5-21120 SWING MOTOR SUB ASSY |
| R160LC9, R160LC9A, R160LC9S, R180LC9, R180LC9A, R180LC9S, R180W9S |
| 31Q5-21130 SWING MOTOR SUB ASSY |
| R160LC9, R160LC9A, R160LC9S, R180LC9, R180LC9A, R180LC9S, R180W9S |
| 31Q5-21220 SWING MOTOR SUB ASSY |
| R160W9A, R170W9 |
| 31Q5-21230 SWING MOTOR SUB ASSY |
| R160W9A, R170W9 |
| 31Q5-21320 SWING MOTOR SUB ASSY |
| R180W9A |
| 31Q5-21330 SWING MOTOR SUB ASSY |
| R180W9A |
| 31Q6-10151 SWING MOTOR ASSY |
| R210LC9 |
| 31Q6-10151SG8 SWING MOTOR ASSY |
| R210LC9 |
| 39Q6-10152 SWING MOTOR ASSY |
| R210LC9, R210LC9BC, R210LC9BH, R210NLC9, R235LCR9, R235LCR9A |
| 38Q6-10152 SWING MOTOR ASSY |
| R210LC9, R210LC9BC, R210LC9BH, R210NLC9, R235LCR9, R235LCR9A |
| 38Q6-10172 SWING MOTOR ASSY |
| R210W-9, R210W9MH, R210W9S |
| 81Q6-01080 SWING BEARING |
| HX220L, R210LC9, R210LC9BH, R220LC9A, RB220LC9S |
| 38Q6-11100 SWING MOTOR |
| R210LC9, R210LC9BC, R210LC9BH, R210NLC9, R210W-9, R210W9MH, R210W9S, R220LC9A, R220NLC9A, R235LCR9, R235LCR9A, RB220LC9S, RD220LC9 |
| 38Q6-10150 SWING MOTOR |
| R210LC9, R210LC9BC, R210LC9BH, R210NLC9, R210W-9, R210W9MH, R210W9S, R235LCR9, R235LCR9A, RB220LC9S |
| Pos. | Part No | Qty | Parts name | Comments |
| N*. | @ | [1] | SWING MOTOR ASSY | SEE 4100 |
| *-2. | 31Q6-10140 | [1] | SWING REDUCTION GEAR | |
| *-2. | 31Q6-10141 | [1] | SWING REDUCTION GEAR | |
| *-2. | 31Q6-10141AR | [1] | SWING REDUCTION GEAR | |
| 1 | XKAQ-00771 | [1] | CASING | |
| 1 | XKAQ-00962 | [1] | CASING | |
| 2 | XKAQ-00403 | [1] | SHAFT-DRIVE | |
| 2 | XKAQ-00780 | [1] | SHAFT-DRIVE | |
| 3 | XKAQ-00018 | [1] | SPACER | |
| 4 | XKAQ-00026 | [1] | BEARING-ROLLER | |
| 5 | XKAQ-00032 | [1] | SEAL-OIL | |
| 6 | XKAQ-00029 | [1] | BEARING-ROLLER | |
| 6 | XKAQ-00647 | [1] | BEARING-ROLLER | |
| 6 | XKAQ-00961 | [1] | BEARING-ROLLER | |
| 7 | XKAQ-00404 | [1] | PLATE-THRUST | |
| 8 | XKAQ-00753 | [1] | CARRIER ASSY 2 | NOT SHOWN |
| 9 | XKAQ-00075 | [1] | CARRIER 2 | |
| 10 | XKAQ-00023 | [3] | GEAR-PLANET 2 | |
| 11 | XKAQ-00643 | [3] | PIN ASSY 2 | NOT SHOWN |
| 12 | XKAQ-00070 | [3] | PIN 2 | INLC 13 |
| N13. | XKAQ-00291 | [1] | BUSHING 2 | |
| 14 | XKAQ-00071 | [6] | WASHER-THRUST | |
| 15 | XKAQ-00048 | [3] | PIN-SPRING | |
| 16 | XKAQ-00755 | [1] | GEAR-SUN 2 | |
| 17 | XKAQ-00754 | [1] | CARRIER ASSY 1 | NOT SHOWN |
| 18 | XKAQ-00531 | [1] | CARRIER 1 | |
| 19 | XKAQ-00025 | [3] | GEAR-PLANET 1 | |
| 20 | XKAQ-00532 | [3] | PIN 1 | |
| 21 | XKAQ-00030 | [3] | CAGE-NEEDLE | |
| 22 | XKAQ-00057 | [3] | PLATE-SIDE 1 | |
| 23 | XKAQ-00040 | [3] | PLATE-SIDE 2 | |
| 24 | XKAQ-00041 | [3] | RING-STOP | |
| 25 | XKAQ-00010 | [1] | GEAR-SUN 1 | |
| 26 | XKAQ-00534 | [1] | PLATE-SIDE 3 | |
| 27 | XKAQ-00529 | [1] | GEAR-RING | |
| 27 | XKAQ-00779 | [1] | GEAR-RING | |
| 28 | XKAQ-00977 | [1] | GEAR-PINION | |
| 29 | XKAQ-00074 | [1] | RING-STOP | |
| 30 | XKAQ-00072 | [2] | PIN-KNOCK | |
| 31 | XKAQ-00065 | [12] | BOLT-SOCKET | |
| 32 | XKAQ-00031 | [1] | PLATE-COVER | |
| 33 | XKAQ-00064 | [8] | BOLT-HEX | |
| 34 | XKAQ-00043 | [1] | PLATE-LOCK | |
| 35 | XKAQ-00042 | [2] | BOLT-HEX | |
| 36 | XKAQ-00292 | [1] | WASHER-LOCK | |
| 37 | XKAQ-00049 | [1] | PLUG | |
| 38 | XKAQ-00066 | [2] | PLUG | |
| *-1. | @ | [1] | SWING MOTOR UNIT | SEE 4100 |
| N. | @ | [AR] | NOT SUPPLIED PARTS |
