تفاصيل المنتج:
شروط الدفع والشحن:
|
| فئة: | سوينغ محرك | رقم الجزء: | 39Q6-11270 |
|---|---|---|---|
| اسم المنتج: | لوحة الصمام | رقم الجهاز: | HX160L HX180L R160LC9 R180LC9 R210LC9 |
| طلب: | حفارة | مهلة: | 1-3 أيام للتسليم |
| التعبئة: | كرتون التصدير القياسي | ||
| إبراز: | HYUNDAI excavator swing motor valve plate,39Q6-11270 valve plate for HX160L,excavator swing motor parts with warranty,39Q6-11270 valve plate for HX160L,excavator swing motor parts with warranty |
||

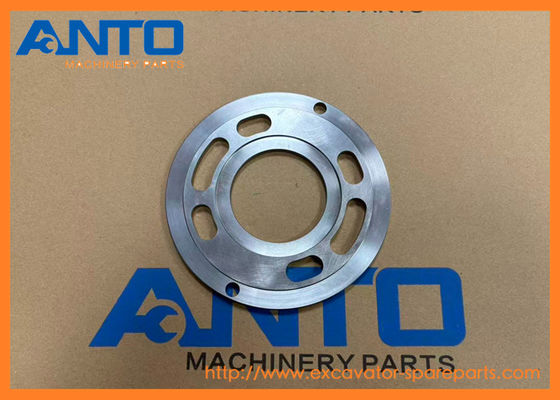

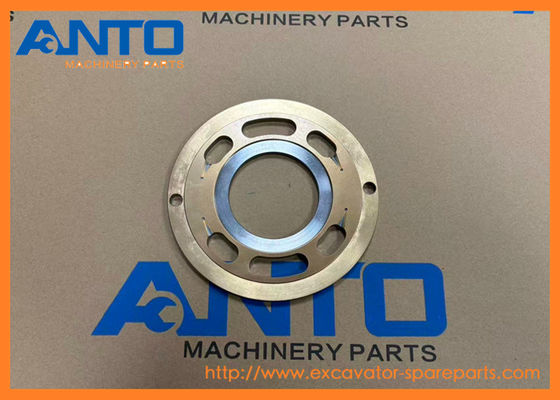

39Q6-11270 Valve Plate HYUNDAI Excavator Swing Motor Parts Fit For HX160L HX180L R160LC9
Specifiion
| Category | Swing Motor Parts |
| Name | Valve Plate |
| Parts No | 39Q6-11270 |
| Machine Number | HX160L HX180L HX220L HX220NL R160LC9 R180LC9 |
| Lead time | 1-3 DAYS |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Means of transport | By sea/air, DHL FEDEX UPS TNT |
| Packing | As request or standard packing |
1.Flow Direction Control: Directs hydraulic oil into and out of the cylinder block, enabling the pump to convert mechanical energy (from the engine) into hydraulic energy.
2.Pressure Maintenance: Prevents internal oil leakage via tight sealing, ensuring the hydraulic system maintains the required pressure for heavy-duty tasks (e.g., lifting rocks or pushing debris).
3.Friction Reduction: Pressure balance grooves and smooth surface minimize wear between the valve plate and cylinder block, extending the pump’s service life.
4.Overpressure Protection: Integrated relief channels prevent system pressure from exceeding safe limits, safeguarding the pump, hoses, and actuators from damage.
7-SERIES CRAWLER EXCAVATOR R210LC7A
9-SERIES CRAWLER EXCAVATOR R160LC9 R160LC9A R160LC9S R180LC9 R180LC9A R180LC9S R210LC9 R210LC9BC R210LC9BH R210NLC9 R220LC9A R220NLC9A R235LCR9 R235LCR9A RB220LC9S RD220LC9
9-SERIES WHEEL EXCAVATOR R160W9A R170W9 R180W9A R180W9S R210W-9 R210W9MH R210W9S
F-SERIES CRAWLER EXCAVATOR HX160L HX180L HX220L HX220NL Hyundai
| 24L3-30710 PLATE |
| 100D-7, 110D-7E, 15BT-9, 16B-9, 180D-9, 22B-9, 22BH-9, 250D-9, 40B-9, 50D-7A, 50D-7K, 50DE, 50DEACE, 50DF, 80D-9, 80DE, 80DEACE, H70, H80, HL720-3, HL720-3C, HL730-7, HL730-7A, HL7303, HL7303C, HL730T... |
| 21EM-45070 PLATE-VANE |
| 33HDLL, 42HDLL, HX180L, R110-7, R110-7A, R125LCR-9A, R130LC3, R130W3, R140LC-7, R140LC-7A, R140LC9, R140LC9A, R140LC9S, R140W7, R140W7A, R140W9, R140W9A, R140W9S, R145CR9, R145CR9A, R160LC3, R160LC7, ... |
| 21K8-25271 PLATE |
| HX220L, HX300L |
| 21K8-60030 PLATE |
| HX220L |
| 21K8-25222 PLATE |
| HX220L, HX260L |
| 39Q6-43410 PLATE-VALVE |
| HX220L, HX220NL |
| 21K8-25272 PLATE |
| HX220L, HX220NL, HX260L, HX300L, HX330L, HX380L, HX430L |
| 21K8-25223 PLATE |
| HX220L, HX220NL, HX260L, HX300L, HX330L, HX380L, HX430L, HX480L, HX520L |
| 21QB-20080Y7 PLATE-CLAMP |
| R140LC9, R140LC9A, R140LC9S, R140W9, R140W9A, R140W9S, R145CR9, R145CR9A, R160LC9, R160LC9A, R160LC9S, R160W9A, R170W9, R180LC9, R180LC9A, R180LC9S, R180W9A, R180W9S, R210LC9BC, R210LC9BH, R210W9S, RB... |
| 21Q7-48300 PLATE |
| R140LC9A, R140W9A, R160LC9A, R160W9A, R180LC9A, R180W9A, R210W9A, R220LC9A, R250LC9A, R300LC9A, R330LC9A, R380LC9A, R480LC9A, R520LC9A |
| 21Q7-48200 PLATE-CLIP |
| R140LC9A, R140W9A, R160LC9A, R160W9A, R180LC9A, R180W9A, R210W9A, R220LC9A, R250LC9A, R300LC9A, R330LC9A, R380LC9A, R480LC9A, R520LC9A |
| JB0A4003 PLATE |
| R210W9MH |
| 39Q6-41370 PLATE-SEPERATED |
| HW210, HX160L, HX180L, HX220L, HX220NL, HX235L, HX260L, HX300L, HX330L, HX480L, HX520L, R160LC9, R160LC9A, R160LC9S, R160W9A, R170W9, R180LC9, R180LC9A, R180LC9S, R180W9A, R180W9S, R210LC7A, R210LC9, ... |
| 39Q6-41360 PLATE-FRICTION |
| R210LC9, R210LC9BC, R210LC9BH, R210NLC9 |
| 39Q6-11210 PLATE-RETAINER |
| HW210, HX160L, HX180L, HX220L, HX220NL, HX235L, HX260L, HX300L, HX330L, HX480L, HX520L, R160LC9, R160LC9A, R160LC9S, R160W9A, R170W9, R180LC9, R180LC9A, R180LC9S, R180W9A, R180W9S, R210LC7A, R210LC9, ... |
| XJDD-00902 PLATE(3.1T)-BACK UP |
| R170W7A, R170W9S, R180W9S |
| 31N4-13080GG PLATE-LOCK |
| R170W9S, R180W9S |
| 71Q4-10240 PLATE WA |
| R170W9 |
| 71Q4-21491 PLATE WA |
| R140W9A, R160W9A, R170W9, R180W9A |
| Pos. | Part No | Qty | Parts name | Comments |
| N*. | 38Q5-10150 | [1] | SWING MOTOR ASSY | *-1, *-2, TYPE 2 |
| N*. | 38Q5-10151 | [1] | SWING MOTOR ASSY | *-1, *-2, TYPE 2 |
| *-1. | 38Q5-11100 | [1] | SWING MOTOR UNIT | TYPE 2 |
| 1 | 39Q6-11110 | [1] | CASING | |
| *-A. | 39Q6-11160 | [1] | ROTARY KIT | INCL *-B, *-C, 12 |
| *-B. | 39Q6-11170 | [1] | CYLINDER BLOCK KIT | INCL 8, 9 |
| N8. | 39Q6-11180 | [1] | BLOCK-CYLINDER | |
| N9. | 39Q6-41290 | [9] | SPRING | |
| *-C. | 39Q6-11190 | [1] | RETAINER KIT | INCL 10, 11 |
| N10. | 39Q6-11200 | [1] | GUIDE-BALL | |
| N11. | 39Q6-11210 | [1] | PLATE-RETAINER | |
| N12. | 39Q6-11220 | [9] | PISTON ASSY | |
| NK2. | 39Q6-11660 | [1] | SEAL-OIL | |
| 3 | 39Q6-11120 | [1] | SHAFT | |
| 4 | S601-040004 | [1] | RING-SNAP | |
| 5 | 39Q6-11130 | [1] | BEARING-ROLLER | |
| 6 | 39Q6-11140 | [1] | BEARING-NEEDLE | |
| 7 | 39Q6-11150 | [1] | PLATE-SWASH | |
| 13 | 39Q6-41361 | [4] | PLATE-FRICTION | |
| 14 | 39Q6-41370 | [4] | PLATE-SEPARATED | |
| 15 | 39Q6-11250 | [1] | PISTON-PARKING | |
| 16 | 39Q8-11180 | [26] | SPRING | |
| 17 | S471-800454 | [1] | PIN-SPRING | |
| NK18. | Y172-043004 | [1] | O-RING | |
| NK19. | Y172-041004 | [1] | O-RING | |
| 20 | 39Q6-11270 | [1] | PLATE-VALVE | |
| 21 | S471-800254 | [2] | PIN-SPRING | |
| NK22. | Y172-042004 | [1] | O-RING | |
| 23 | 39Q6-11281 | [1] | CASING A-VALVE | |
| 24 | 39Q6-11290 | [2] | VALVE-CHECK | |
| 25 | 39Q6-11300 | [2] | SPRING-CHECK VALVE | |
| 26 | 39Q6-11671 | [2] | PLUG | |
| NK27. | S631-040004 | [2] | O-RING | |
| 28 | 39Q6-41750 | [3] | PLUG | |
| NK29. | S631-011004 | [3] | O-RING | |
| 30 | 39Q5-11310 | [2] | VALVE ASSY-RELIFE | |
| 31 | 39Q6-11420 | [2] | REACTIONLESS VLV ASSY | |
| 32 | 39Q6-11500 | [2] | PLUG | |
| NK33. | S631-012004 | [2] | O-RING | |
| NK34. | S631-018004 | [2] | O-RING | |
| 35 | 39Q6-11510 | [1] | VALVE ASSY-TIME DELAY | |
| 36 | 39Q6-11601 | [1] | GAUGE-LEVEL | |
| 37 | S109-180456 | [2] | BOLT-SOCKET | |
| 38 | S109-180556 | [4] | BOLT-SOCKET | |
| 39 | P220-430202 | [1] | PLUG-HEX | |
| 40 | 38Q6-11650 | [1] | NAME PLATE | |
| 40 | 38Q6-11651 | [1] | NAME PLATE | |
| 41 | 39Q6-41800 | [2] | RIVET | |
| *-2. | 39Q5-12100 | [1] | SWING REDUCTION GEAR | SEE 4115 |
| *-2. | 39Q5-12101 | [1] | SWING REDUCTION GEAR | SEE 4115 |
| K. | 39Q6-11700 | [1] | SEAL KIT | SEE ILLUST |
| K. | 38Q5-11710 | [1] | VALVE CASING KIT | SEE ILLUST |
| N. | @ | [AR] | NOT SUPPLIED PARTS |
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
| Travel Motor |
