تفاصيل المنتج:
شروط الدفع والشحن:
|
| فئة: | المضخة الهيدروليكية | رقم الجزء: | VOE15107357 |
|---|---|---|---|
| اسم المنتج: | صمام التحكم | رقم الجهاز: | L110F L120F L45F L45G L45H L50F L50G |
| تطبيق: | تحميل العجلات | مهلة: | 1-3 أيام للتسليم |
| التعبئة: | كرتون التصدير القياسي | ||
| إبراز: | Control valve for wheel loader,Wheel loader spare parts fitting,Hydraulic control valve L45H,Wheel loader spare parts fitting,Hydraulic control valve L45H |
||

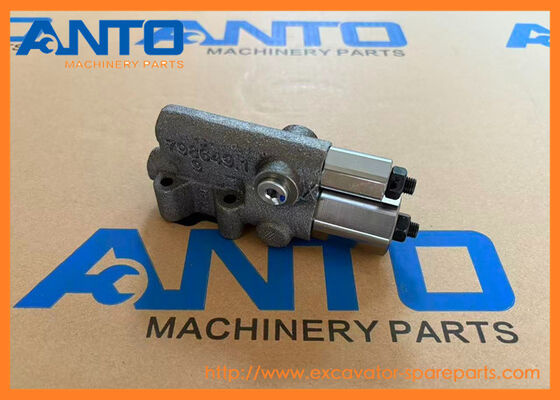

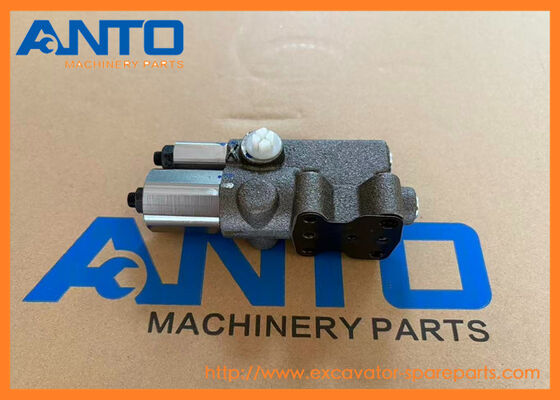

VOE15107357 Control Valve Wheel Loader Spare Parts Fitting For L45H L50F L110F L120F
Specifiion
| Category | Hydraulic Pump |
| Name | Control Valve |
| Parts No | VOE15107357 |
| Machine Number | L110F L120F L45F L45G L45H L50F L50G |
| Lead time | 1-3 DAYS |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Means of transport | By sea/air, DHL FEDEX UPS TNT |
| Packing | As request or standard packing |
| Working Principle | 1. High-pressure hydraulic oil from the main pump enters the valve’s inlet port and fills the valve body |
| 2. When the operator moves a joystick (pilot control), low-pressure pilot oil signals the corresponding spool to shift | |
| 3. The shifted spool opens passages to direct hydraulic oil to the target actuator (e.g., boom cylinder), while returning used oil to the tank | |
| 4. Integrated pressure relief valves limit maximum pressure to prevent system damage; flow control orifices regulate oil flow rate for smooth, proportional movement | |
| 5. When the joystick is released, the spool returns to neutral (spring-centered), stopping oil flow and locking the actuator in position | |
| Core Functions | 1. Flow/Pressure Regulation: Controls the volume and pressure of hydraulic oil to match the load (e.g., slower, higher-pressure flow for heavy lifting; faster flow for light loads) |
| 2. Directional Control: Determines the movement direction of hydraulic cylinders/motors (e.g., boom up/down, bucket in/out) | |
| 3. Load Holding: Spring-centered spools lock actuators in place when controls are released, preventing unintended movement (critical for safety) | |
| 4. System Protection: Integrated relief valves and check valves prevent overpressure, cavitation, and hydraulic shock | |
| 5. Multi-Function Coordination: Enables simultaneous operation of multiple functions (e.g., excavator stick in + bucket curl) without performance loss |
WHEEL LOADERS L110F L120F L45F L45G L45H L50F L50G Vo.lvo.
| VOE11443400 Control unit |
| A25F, A25F/G, A25G, A30F, A30F/G, A30G, A35F, A35F FS, A35F/G, A35F/G FS, A35G, A40F, A40F FS, A40F/G, A40F/G FS, A40G, A45G, A45G FS, A60H, EC120D, EC140C, EC140D, EC160C, EC160D, EC170D, EC180C, EC1... |
| VOE21596642 Control valve |
| A35F/G, A35F/G FS, A35G, A40F/G, A40F/G FS, A40G, A45G, A45G FS, A60H, EC700CHR, EC750D, EC750E, EC950E, L150H, L180H, L180H HL, L220H, L250H |
| VOE21596649 Control valve |
| A25D, A25E, A30D, A30E, A35F, A35F FS, A40E, A40E FS, A40F, A40F FS, EC700C, EC700CHR, G900 MODELS, L350F |
| VOE21870087 Control unit |
| A25F/G, A30F/G |
| VOE11430000 Control system |
| A35E, A35E FS, A40E, A40E FS |
| VOE15092003 Control valve |
| A35E, A35E FS, A40E, A40E FS |
| VOE22423434 Control Unit |
| A25F/G, A25G, A30F/G, A30G, A35F/G, A35F/G FS, A35G, A40F/G, A40F/G FS, A40G, A45G, A45G FS, A60H, EC350E, EC380E, EC380EHR, EC480E, EC480EHR, EC750E, EC950E, L150H, L180H, L180H HL, L220H, L250H, PL4... |
| VOE11443992 Control unit |
| A25F, A25F/G, A25G, A30F, A30F/G, A30G, A35F/G, A35F/G FS, A35G, A40F/G, A40F/G FS, A40G, A45G, A45G FS, A60H, BL60B, BL70B, DD105, EC140B, EC140D, EC140E, EC160E, EC180E, EC210B, EC210D, EC220E, EC29... |
| VOE17416942 Control lever |
| L110F, L110G, L110H, L120F, L120G, L120H, L150F, L150G, L150H, L180F, L180G, L180H, L220F, L220G, L220H, L250G, L250H, L350F |
| VOE22449430 Control unit |
| A35F/G FS, A35G, A40F/G, A40F/G FS, A40G, A45G, A45G FS, A60H, EC350E, EC380E, EC380EHR, EC480E, EC480EHR, EC750E, PL4809E |
| VOE22449432 Control unit |
| A25F/G, A25G, A30F/G |
| VOE11443995 Control unit |
| A25F/G, A25G, A30F/G, A30G, A35F/G, A35F/G FS, A35G, A40F/G, A40F/G FS, A40G, A45G, A45G FS, A60H |
| VOE12783135 Control unit |
| DD110B, DD120B, DD140B |
| VOE11004080 Control lever |
| L120, L120B VOLVO BM, L150/L150C VOLVO BM, L160, L180/L180C VOLVO BM, L330C VOLVO BM, L50B/L50C VOLVO BM, L70, L70B/L70C VOLVO BM, L90B VOLVO BM |
| VOE4851945 Control Cable |
| 4500 |
| RM15495682 Control valve |
| OMNI 1A |
| RM13632690 Control panel |
| PF161 |
| VOE14619948 Control valve |
| EW160C |
| VOE12785627 Control Unit |
| DD110B, DD120B |
| Pos. | Part No | Qty | Parts name | Comments |
| VOE17219863 | [1] | Hydraulic pump | ||
| 1 | VOE15107357 | [1] | Valve | |
| 2 | VOE11715266 | [1] | Gasket | |
| 3 | VOE17221847 | [1] | Control valve | ORDER ALSO VOE17260578, VOE17260673, VOE17478043 |
| 4 | VOE17222775 | [1] | Sealing kit |
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
