| Model number: | 3116 | Product name: | Water pump |
|---|---|---|---|
| Part number: | 4P3683 4P-3683 | Transportation: | By sea/air By express |
| Packing: | Standard Export Carton | Warranty: | 6/12 Months |
| إبراز: | 3116 engine water pump,excavator engine water pump,4P3683 water pump replacement,excavator engine water pump,4P3683 water pump replacement |
||

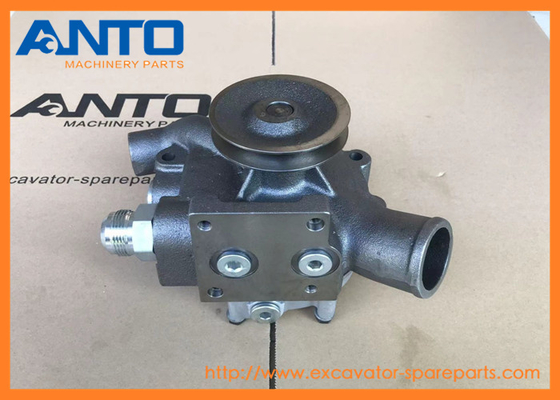

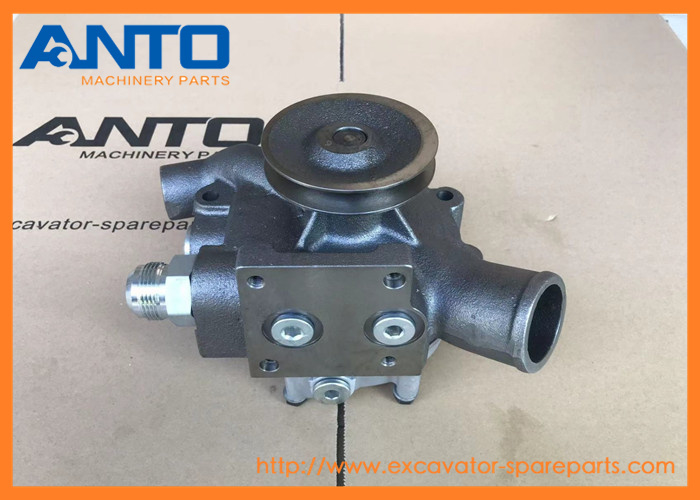

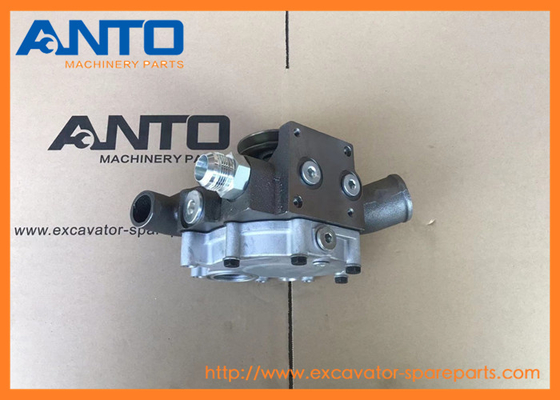

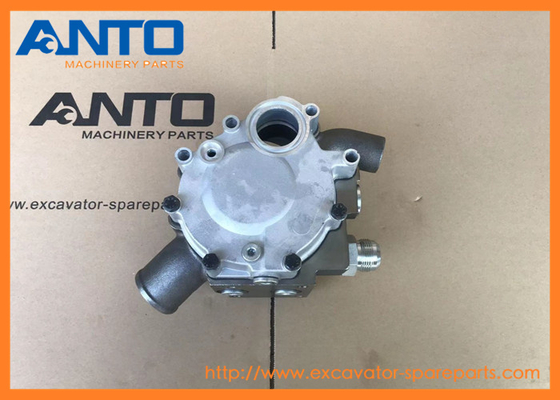

4P3683 4P-3683 Water Pump Excavator Engine Parts Fitting For Engine 3116
Specification
| Application | C A T Excavator Engine Parts |
| Name | Water pump |
| Parts No | 4P3683 4P-3683 |
| Model |
3116 |
| Delivery time | Stock for urgent delivery |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Design | made in china |
| Means of transport | By sea/air, DHL FEDEX UPS TNT Express |
| Packing | As request or standard packing |
1.Power Transmission and Impeller Rotation: The water pump is typically driven by a belt connected to the engine's crankshaft. As the engine operates, the crankshaft rotates, and through the belt, this rotational force is transferred to the water pump's impeller. The impeller is a key component within the water pump, and its rotation is the driving force for water circulation.
2.Cooling Water Intake: When the impeller rotates, it creates a low - pressure area at the water pump's inlet. This low - pressure environment enables the water pump to draw in cooling water from the radiator or the coolant reservoir. The cooling water is usually a mixture of water and antifreeze, which has good heat - transfer properties.
ENGINE 3116
| 4W2195 PUMP GP-ENGINE OIL |
| 120H, 120H ES, 120H NA, 135H, 135H NA, 213B, 214B, 224B, 30/30, 3116, 3126, 320 L, 320B, 322, 322 FM L, 322 LN, 322B, 322B L, 322B LN, 325, 325 L, 325 LN, 325B, 325B L, 45, 55, 561M, 613C II, 928F, 92... |
| 7C6438 PUMP GP-WATER |
| 3114, 3116, 533, 543, 910E, 918F, 924F, 953B, AP-1000, AP-1000B, AP-1050, AP-1055B, BG-2455C, BG-245C, CB-434, CB-634C, CB-634D, CP-563, CS-531, CS-531C, CS-533, CS-533C, CS-563C, CS-573, CS-573C, CS-... |
| 2W8625 PUMP GP-ENGINE OIL |
| 213B, 214B, 224B, 3116, 320 L, 322, 322 FM L, 322 LN, 325, 325 L, 325 LN, 613C II, 928F, 938F, 950F, 950F II, 953B, 960F, AP-1000, AP-1050, CB-634, CP-563, CS-531, CS-533, CS-533C, CS-573, CS-583, D25... |
| 1154123 PUMP GP-ENGINE OIL |
| 120H, 120H ES, 120H NA, 135H, 135H NA, 3116, 3126, 3126B, 3126E, 322C, 322C FM, 325C, 35, 45, 525B, 533, 535B, 539, 55, 550, 570, 570B, 574, 580, 580B, 613C II, 928G, 950G, 953C, 962G, AP-1000B, AP-10... |
| 1154138 PUMP GP-ENGINE OIL |
| 120H, 120H ES, 120H NA, 135H, 135H NA, 3116, 3126, 3126B, 3126E, 322C, 322C FM, 325C, 35, 45, 525B, 533, 535B, 539, 55, 550, 570, 570B, 574, 580, 580B, 613C II, 928G, 950G, 953C, 962G, AP-1000B, AP-10... |
| 1593142 PUMP GP-WATER |
| 3114, 3116, 533, 543, 924F, AP-1000, AP-1000B, AP-1050, AP-1055B, BG-2455C, BG-245C, CB-634C, CB-634D, CP-563, CS-531C, CS-533C, CS-563C, CS-573C, CS-583C, IT12B, IT24F, TK370, TK371, TK380, TK381 |
| 1004952 PUMP GP-WATER |
| 3116, 3126 |
| 7E3268 PUMP GP-AUXILIARY SEA WATER |
| 3116 |
| 4P7168 PUMP GP-AUXILIARY SEA WATER |
| 3116 |
| Pos. | Part No | Qty | Parts name | Comments |
| 1 | 4P-3683 Y | [1] | PUMP GP-WATER | |
| 2 | 8T-0644 M | [4] | BOLT (M10X1.5X90-MM) | |
| 3 | 2M-4453 | [1] | SEAL-O-RING | |
| 4 | 4J-0524 | [1] | SEAL-O-RING | |
| M | METRIC PART | |||
| R | REMANUFACTURED PART MAY BE AVAILABLE | |||
| Y | SEPARATE ILLUSTRATION | |||
1.Final drive: Travel gearbox, Travel gearbox with motor, Carrier ass'y, Sun gear shaft
2.Swing gear: Center joint ass'y, Swing gearbox, Swing motor, Gear reduction ass'y
3.Undercarriage Parts: Track roller, Track link ass'y, Idler roller, Sprocket, Spring ass'y
4.Hydraulic parts: Hydraulic pump, Main Valve, Hydraulic cylinder
5. Engine parts: Engine Ass’y, Crankshaft, Turbocharger, Fuel injector, Flywheel, Starter motor, Cooling fan, Solenoid valve
6.Electrical parts: Wiring harness, Controller, Monitor
7.Other: Cylinder Seal Kits, Fuel tank, Filter, Boom, Arm, Bucket etc.
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
Advantage
1. Offer Top quality & competitive products
2. Support 6-month warranty
3. 100% tested before shipping
4. Delivery in time
5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator
6. More than 15 years production and 11 years foreign trade experience
7. Professional QC team
8. Best sales team, 24 hours service
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
